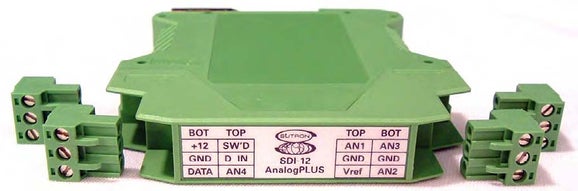

SUTRON SDI-12 Analog Plus Module

The SDI-12 Analog Plus Module is a transcription device, using its five ports to intake multiple sensor inputs and then translate these signals into the SD-12 communication protocol. By doing so, the SDI-12 Analog Plus Module serves as a universal SDI-12 converter, providing SDI-12 compatibility to sensors with exclusive analog or digital outputs. The SDI-12 AnalogPlus module has five ports; three dedicated to analog, one exclusively for digital measurements, and one other that can be used for analog as well as logic level driven digital measurements. This array allows the module to process and convert measurements from a variety of sensors for SDI-12 data recorder transfer. A SDI-12 AnalogPlus module is compact, does not require special power accommodations, and mounts directly to a DIN rail. With minimal need for recurring maintenance, this module represents a simple “plug-and-play” addition to most measurement stations in need of rapid SDI-12 interoperability.
