Product Number: 0367900

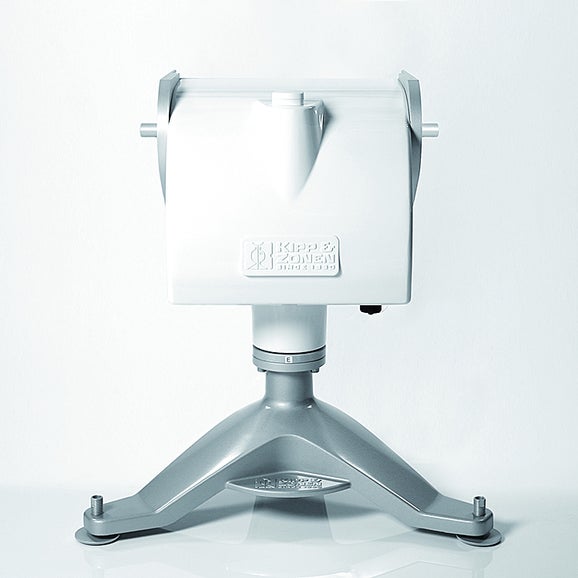

The Kipp & Zonen SOLYS2 is a versatile sun tracking solution, a wide range of radiometers can be mounted. The integrated GPS automatically configures location and time, so the instrument does not suffer from internal clock drift.
Solar position and status monitoring information are available via the communication ports. An optional sun sensor is available for active tracking, to correct for motion in a support affected by changing environmental conditions.
SOLYS2 has both an isolated 4-wire RS-485 port and an Ethernet port for communication with the free SOLYSMonitor Windows™ software, or with data acquisition systems. RS-485 is particularly suited to a permanent remote access connection to regularly obtain the calculated sun position (zenith and azimuth angles) and the GPS time.

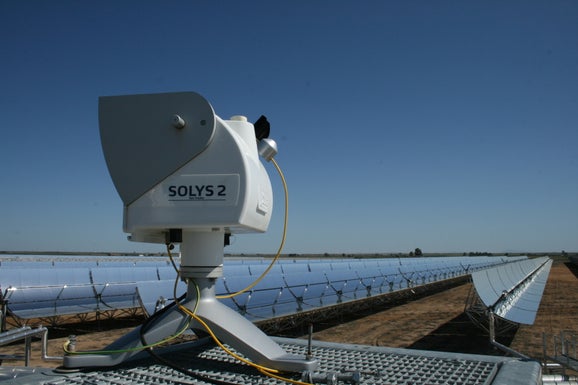

Applications: For use in harsher climates and to carry multiple instruments. Meteorology, climatology and BSRN stations. Solar energy site prospecting and plant monitoring.
The time is regularly updated by the GPS receiver. If the tracker is correctly leveled and aligned, and mounted on a solid and stable support, it will continue to point accurately. An optional sun sensor is available for active tracking.
An advance over conventional sun trackers is the integrated GPS receiver to automatically configure location and time data upon installation. SOLYS2 does not require a computer and software for setup. Leveling is easily checked using the integrated bubble level on top.

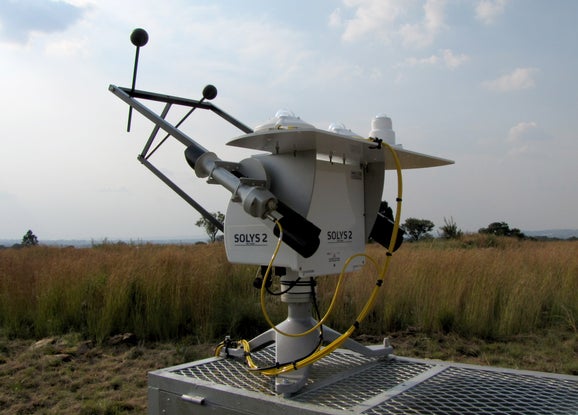

With the optional top mounting plate and shading assembly SOLYS2 can be configured as a complete solar monitoring station with up to three ventilated Kipp & Zonen radiometers. A large range of mounting kits is available for direct solar radiation instruments.
